Unity Lasers

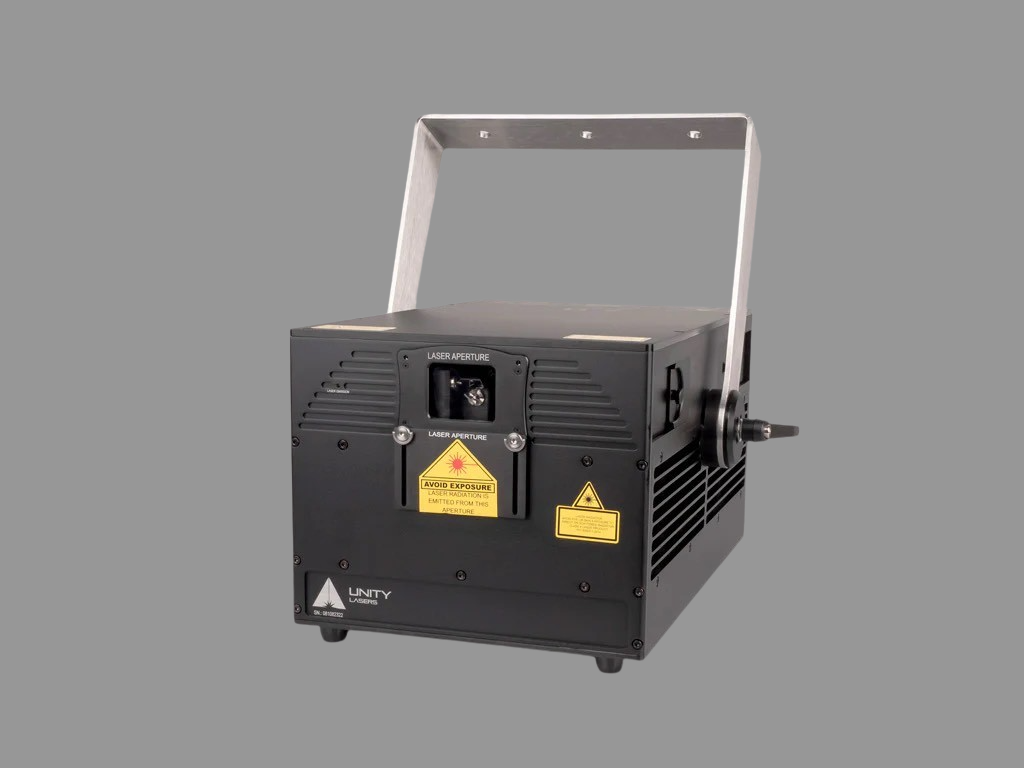

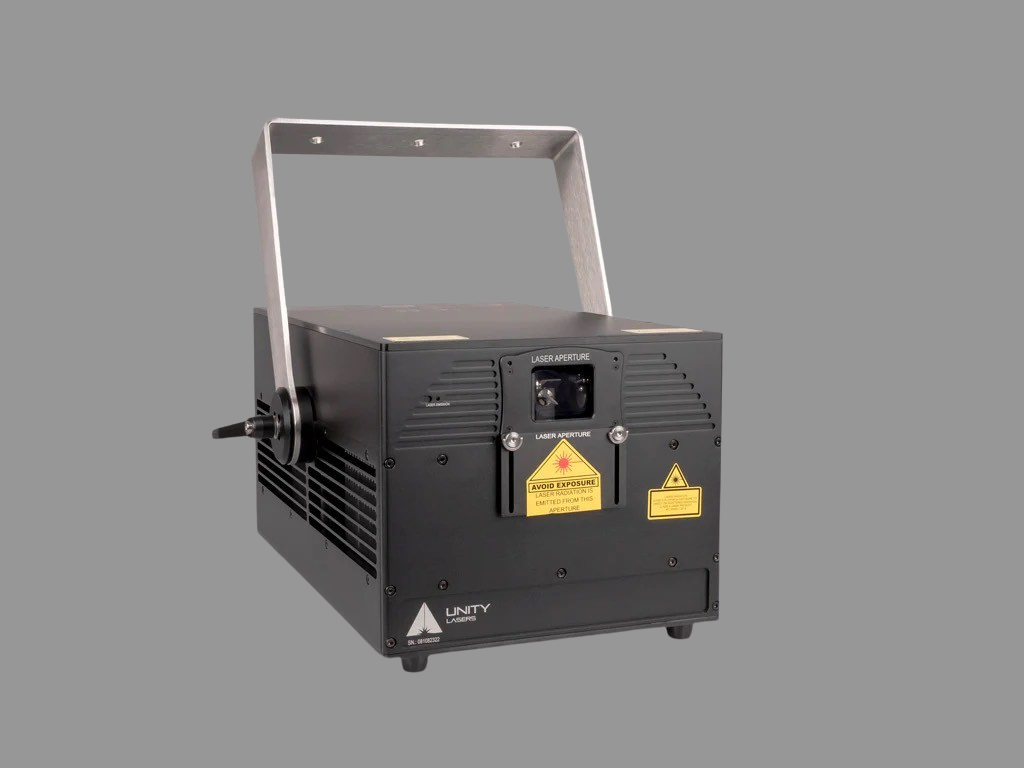

UNITY ELITE PRO 20 FB4
UNITY ELITE PRO 20 FB4
Price on application
Request QuotationOverview:
The Unity Elite pro series combines all of the great operational and safety features included in the other Unity models, and also features the Pangolin FB4 'media server' built in. This gives the user many options to control the laser, including the free bundled Quickshow software. DMX, Artnet and Autoplay modes are also available.

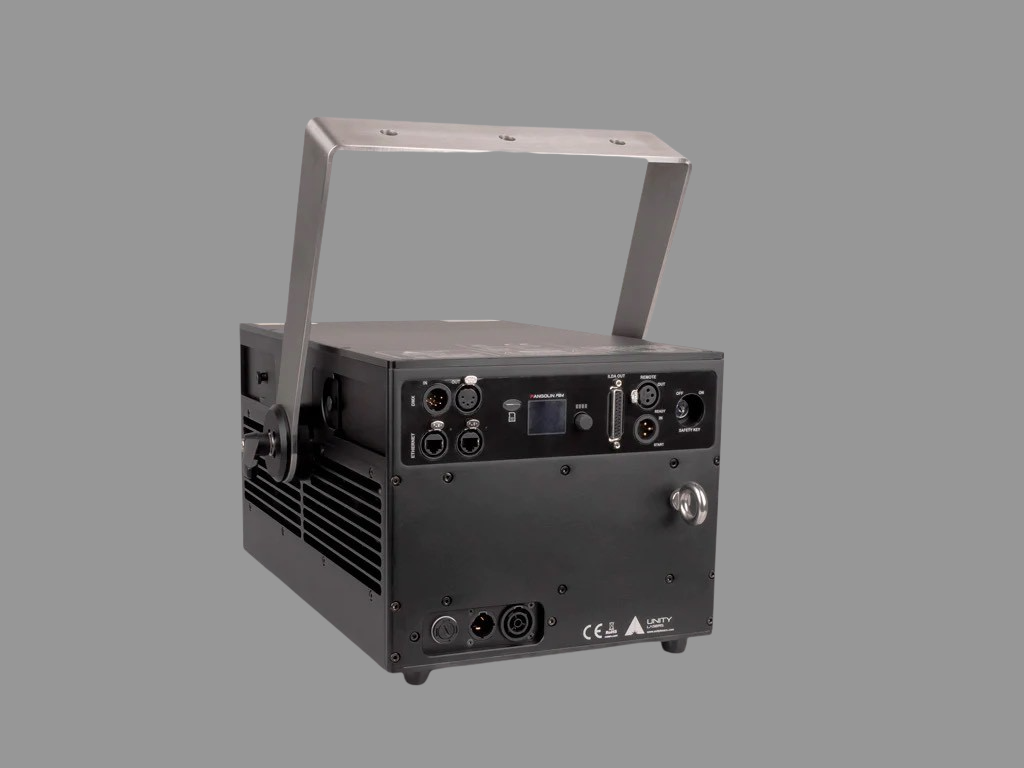

Distinguishing features the ELITE 20 PRO has include Ethernet in and out top allow many lasers to simply be daisy chained. An access panel on the side of the laser allows for fast RGB alignment without the need to open the case.
The ELITE 20 PRO is perfectly suited to the majority of larger indoor events and smaller outdoor events
Specifications:
| Product Name: | Unity ELITE 20 PRO |
| Type Of Laser: | Full-colour, Semiconductor diode laser system |
| Guaranteed Optical Output: | >22,000mW |
| Suitable For: | Large indoor and outdoor events; laser shows, and laser graphic displays |
| System Control: |
Pangolin FB4 [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console, Auto Mode] |
| Scanning System: | 30kpps @ 8° |
| Scan Angle: | max. 45° |
| Safety: | Fully complies with the latest EN 60825-1 and FDA regulations |
| Weight: | 23.4kg |
| Package Includes: | Heavy-duty flight case, laser projector, mains-power cable, 10M Ethernet cable, E-STOP Remote with 10M XLR cable, set of 4 safety keys, 3-pin interlock bypass plug [for the US only], USB drive with a User Manual, QC certificate. |
| R | G | B [mW]: | 6000 | 8000 | 8000 |
| Beam Size [mm]: | 6 x 6 |
| Beam Divergence: | <1mrad [Full Angle] |
| Modulation: | Analog 100kHz |
| Power Requirements: | 100-230V/50Hz |
| Consumption: | Max. 1200W |
| Operation Temperature: | 10-40 °C |
| Ingress Rating: | IP 20 |
| System Features: | All the adjustments, such as the power output of each colour, X & Y axes invert, X & Y size and position, etc., are controlled digitally via the FB4 control system. Scanning system protection. Daisy chain of emergency STOP signal for multiple system "one-hit" operation. |
| Laser Safety Features: | Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate. |
| Notice: | *Due to the Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output. |
| Dimensions [mm]: |
Length: 426 Width: 392 Height: 227 |
