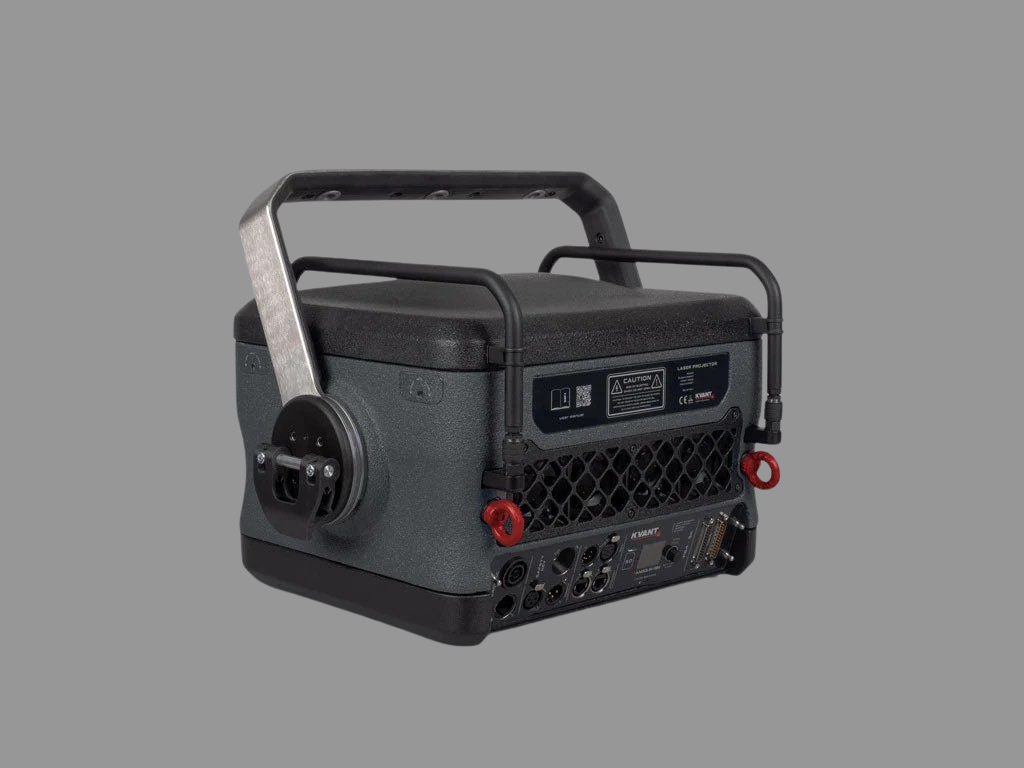

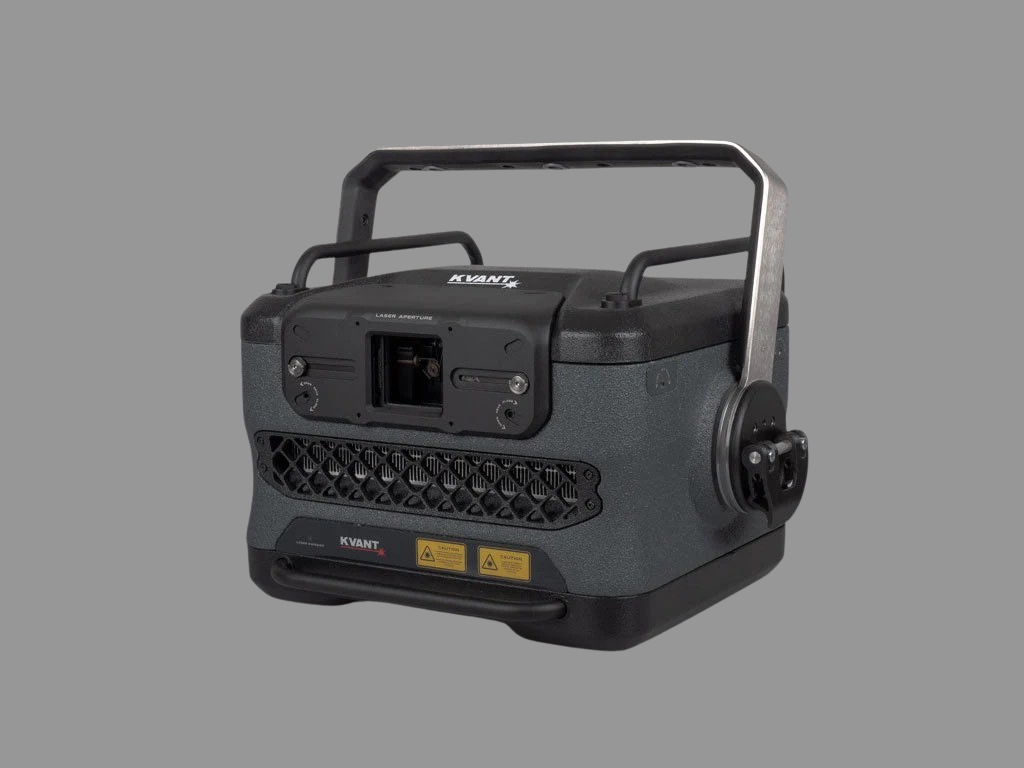

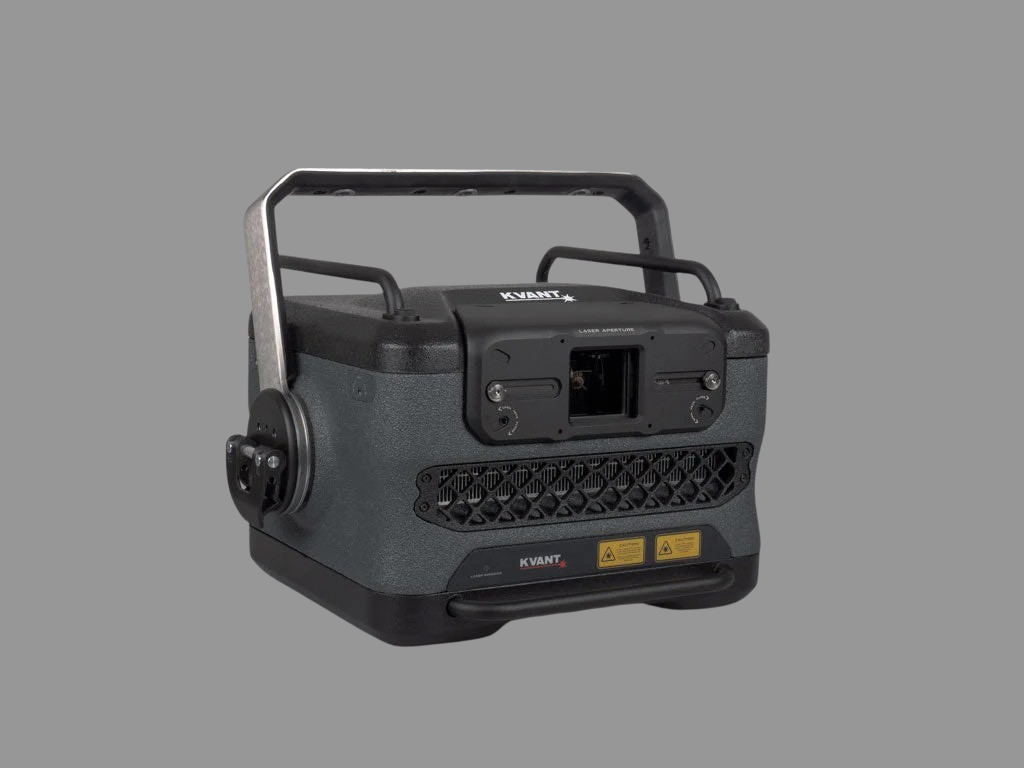

KVANT Spectrum 37 RYGB

Name: KVANT Spectrum 37 RYGB
Brand: KVANT Lasers
Availability: InStock

Price on application

Request Quotation

Product variants

Overview:

KVANT Spectrum 37 RYGB is the culmination of our expertise in laser technology and the desires of laser display professionals. The sleek, practical design of Spectrum laser projectors offers exceptional performance, remarkable beam quality, a range of colors, user-friendly features, and versatile control options to facilitate integration.

Three models are available -- 34-Watt ROGB, 37-Watt RYGB, and 55-Watt RYGB with additional Orange or Yellow OPSL module. Our innovative beam-shaping techniques have enabled us to achieve high luminosity, making these models incredibly bright. Plus, the rugged aluminum chassis with cushioned heatsink, advanced thermal management, and ergonomics allow for effortless, enjoyable use of the Spectrum, allowing you to focus on your creativity.

Specifications:

Source \| Type:	Semiconductor laser diode + OPSL \| Full-colour RYGB laser projector
Suitability:	Outdoor laser displays [atmospheric, abstract, text, animations]
System control:	FB4-SK [Ethernet, ArtNet, DMX, ILDA \| PC, Lighting Console or Autoplay]
Compliant with:	EN 60825-1
Ingress Protection rating:	IP20, or IP54 with the optional Rain Cover installed [certification in progress]
Weight [kg]:	31
Size [WxHxD, mm]:	491 x 310 x 396 [Technical Drawings are in the SUPPORT section of this page]
Guaranteed opt. output:	34.36 Watts
Red \| Yellow \| Green \| Blue [W]:	7 \| 5 \| 14 \| 11 [*note]
Wavelengths [nm, ±5nm]:	637 \| 577 OPSL \| 525 [optional 532 OPSL] \| 462+445
Beam size [mm]:	6 x 6
Beam divergence [mrad]:	0.7 mrad [full angle, **note]
Modulation [kHz] \| type:	100 \| analogue
X-Y scanners:	Juno 5 \| 40 Kpps @ 8°, max. scanning angle 60° on both axes [more options in UPGRADES section]
Power requirements [V] \| Input:	100-240/50-60Hz \| Neutrik powerCON TRUE1
Max. power consumption [VA]:	1200
Operation temperature [°C]:	10-35, or -20 to 40 when installed in the Monsoon outdoor enclosure
Included in the set:	Heavy-duty flight case, 1.5M power lead, 25M Ethernet rj45 signal cable, E-STOP remote with 30M 3-pin XLR cable, set of 4 safety keys, interlock connector [for the USA only], USB memory stick with the user manual. Pangolin QuickShow laser control and creation software is available for FREE download.
HW features:	All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface. Scanning system overload protection. Colour Balance display mode.
Laser safety features:	Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.
*note	Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.
**note	The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as: 1. FWHM of the beam cross-section for round beams, or 2. The arithmetic average of the beam's horizontal and vertical divergence for all rectangular beams.
