Concept Vicount smoke machine
Concept Vicount smoke machine
Couldn't load pickup availability
Overview:

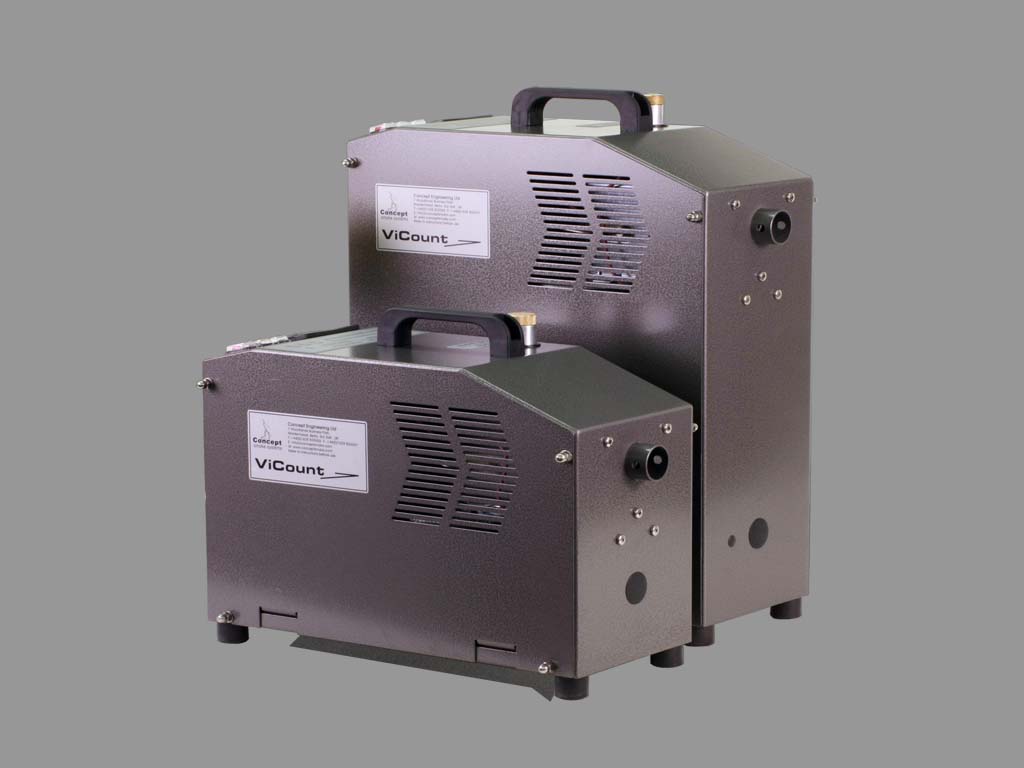

The Vicount range of smoke generators from Concept smoke systems are an oil based system pressurized with an inert gas - CO2 (beer gas / post mix gas) or N2.
The Vicount series is available in 4 different models. These are a 1300ml and 5000ml fluid capacity with the optiuon for an 1100w or 2200w heat exchanger.
Internal DMX is an ordering option.
The smoke produced has particle size of just 0.2 micron. The small particle size simply means an extremely long hang time, untouched by water based systems.
These smoke machine / hazers have to be seen to be believed. Contact us for a demonstration.
Note - CO2 bottle for illustration purposes only. This is not included with machine, and it is recommended that the user runs the machine with Food grade CO2 supplied from BOC or Supagas or similar.
Specifications:
|
General Specification (approx) |
Compact 1300 |
Compact 5000 |
|
Size (cm) |
41 x 18 x 37 |
41 x 18 x 54 |
|
Weight (kg) |
12 |
17 |
|
Power Supply |
230v, 50hz |
230v, 50hz |
|
Optional |
110v, 50/60hz |
110v, 50/60hz |
|
Warm up time from cold (mins) |
4 |
4 |
|
Particle Size (micron, mass median diameter) |
0.2-0.3 |
0.2-0.3 |
|
Standard Variant (1.1kw) |
|
|
|
Heat Exchanger wattage (W) |
1100 |
1100 |
|
Running time at maximum output (min) |
40 |
145 |
|
Smoke output (m3/min @ 1.0m visibility) |
0-150 |
0-150 |
|
HTI 12 / 3-4 hours |
HTI 12 / 3-4 hours |
|
|
Smoke oil consumption (ml/hr) |
2000 |
2000 |
|
Hi-output Variant (2.2kw) |
|
|
|
Heat Exchanger wattage (W) |
2200 |
2200 |
|
Running time at maximum output (min) |
22 |
85 |
|
Smoke output (m3/min @ 1.0m visibility) |
0-290 |
0-290 |
|
HTI 12 / 3-4 hours |
HTI 12 / 3-4 hours |
|
|
Smoke oil consumption (ml/hr) |
3600 |
3600 |
*CO2 cylinder not included
