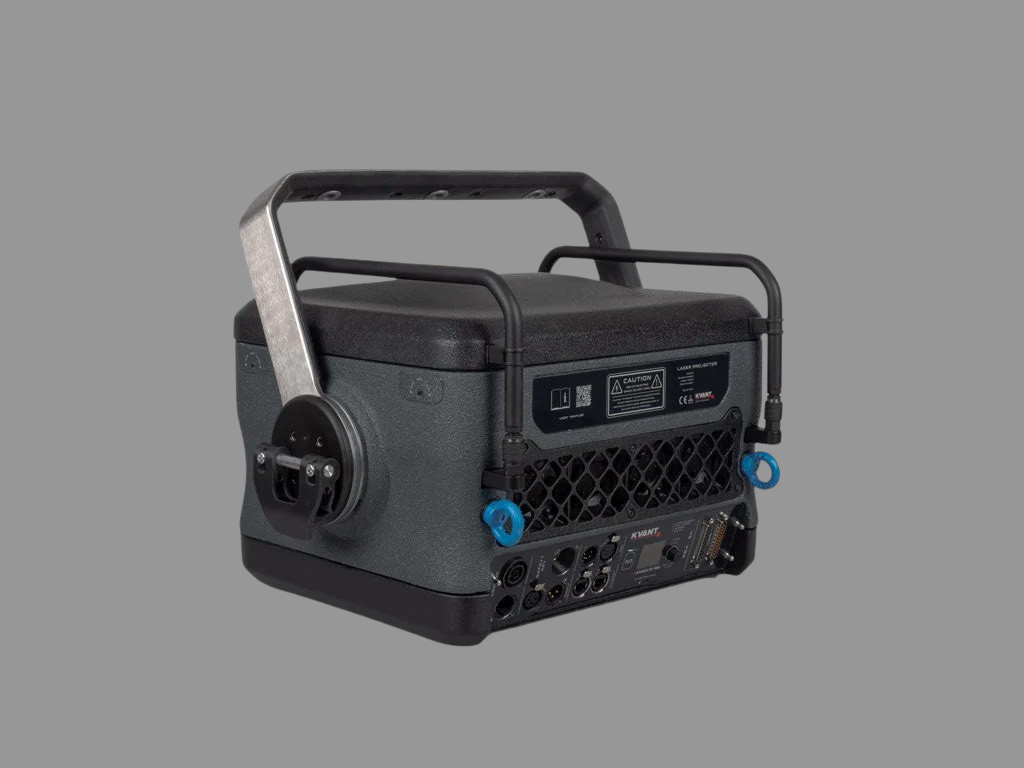

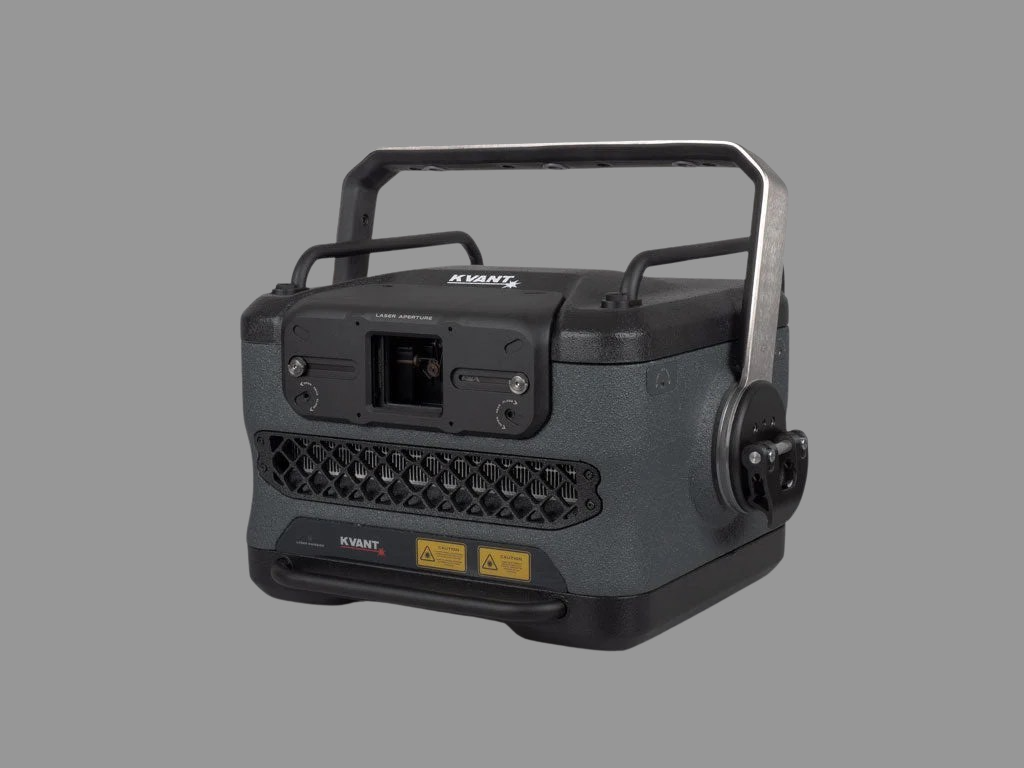

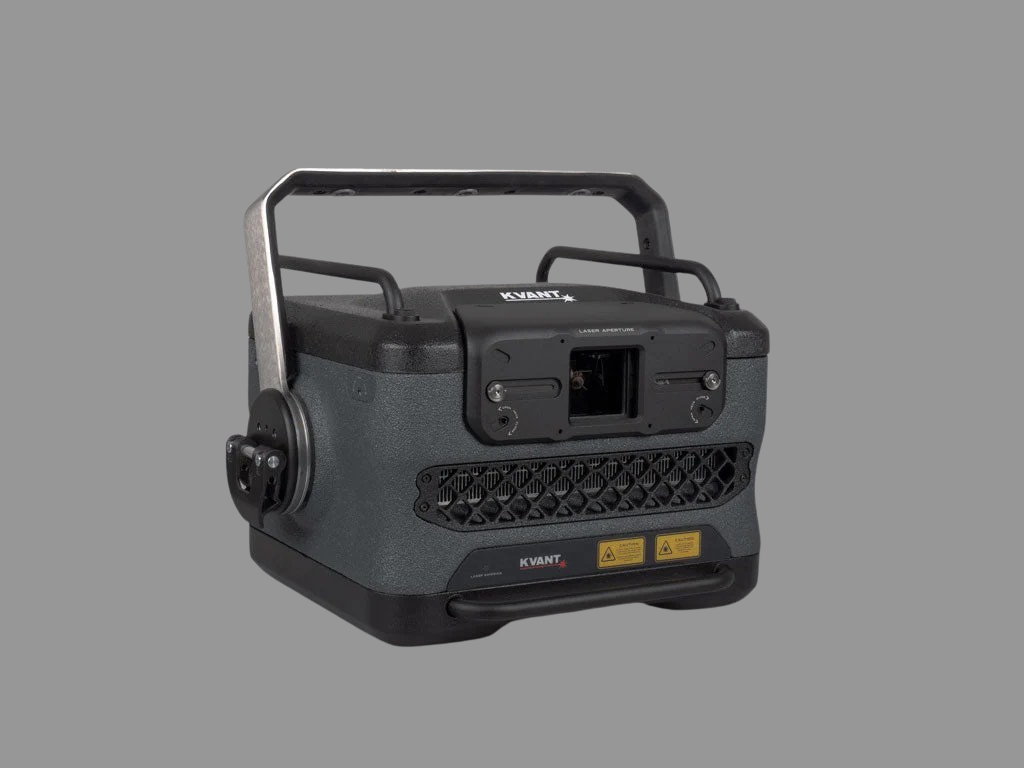

Atom series lasers serve as the bridge between the Clubmax systems and flagship Spectrum projectors. Constructed with the same innovative foam aluminium material as the Spectrum's, Atoms feature a few differences allowing them to offer an affordable price.
The latest Atom is a FAC-diode based, full-colour laser display system providing powerful output, unified beams, vibrant hues and advanced control features and connections. Uniquely, Atoms emit beams with unparalleled divergence while guaranteeing power output throughout the scanning range. This exclusive benefit is rarely found among other manufacturers. As an added advantage, our Atoms are powerful enough for demanding applications yet maintain an affordable sales price.
|Source | Type:||
Semiconductor laser diode [FAC] | Full-colour RGB laser projector
|Suitability:||Outdoor laser displays [atmospheric, abstract, text, animations]|
|System control:||FB4-SK [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console or Autoplay]
|Ingress Protection rating:||
IP20, or IP54 with an optional rain cover installed [certification in progress]
|Size [WxHxD, mm]:||491 x 310 x 396 [Technical Drawings are in the SUPPORT section of this page]
|Guaranteed opt. output:||42 Watts|
|R | G | B [W]:||
9 | 13 | 20 [*note]
|Wavelengths [nm, ±5nm]:||638 | 525 | 455
|Beam size [mm]:||7 x 7|
|Beam divergence [mrad]:||
1 mrad [full angle, **note]
|Modulation [kHz] | type:||100 | analogue|
|X-Y scanners:||Juno 5 | 30 Kpps @ 8°, max. scanning angle 50° on both axes|
|Power requirements [V] | Input:||
100-240/50-60Hz | Neutrik powerCON TRUE1
|Max. power consumption [VA]:||1200|
|Operation temperature [°C]:||10-35, or -20 to 40 when installed in the Monsoon outdoor enclosure|
|Included in the set:||
Heavy-duty flight case, 1.5M power lead, 25M Ethernet rj45 signal cable, E-STOP remote with 30M 3-pin XLR cable, set of 4 safety keys, interlock connector [for the USA only], USB memory stick with the user manual.
Pangolin QuickShow laser control and creation software is available for FREE download.
All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface.
Scanning system overload protection.
Colour Balance display mode.
|Laser safety features:||
Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.
Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.
|**note||The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as:
1. FWHM of the beam cross-section for round beams, or
2. The arithmetic average of the beam's horizontal and vertical divergence for all rectangular beams.
