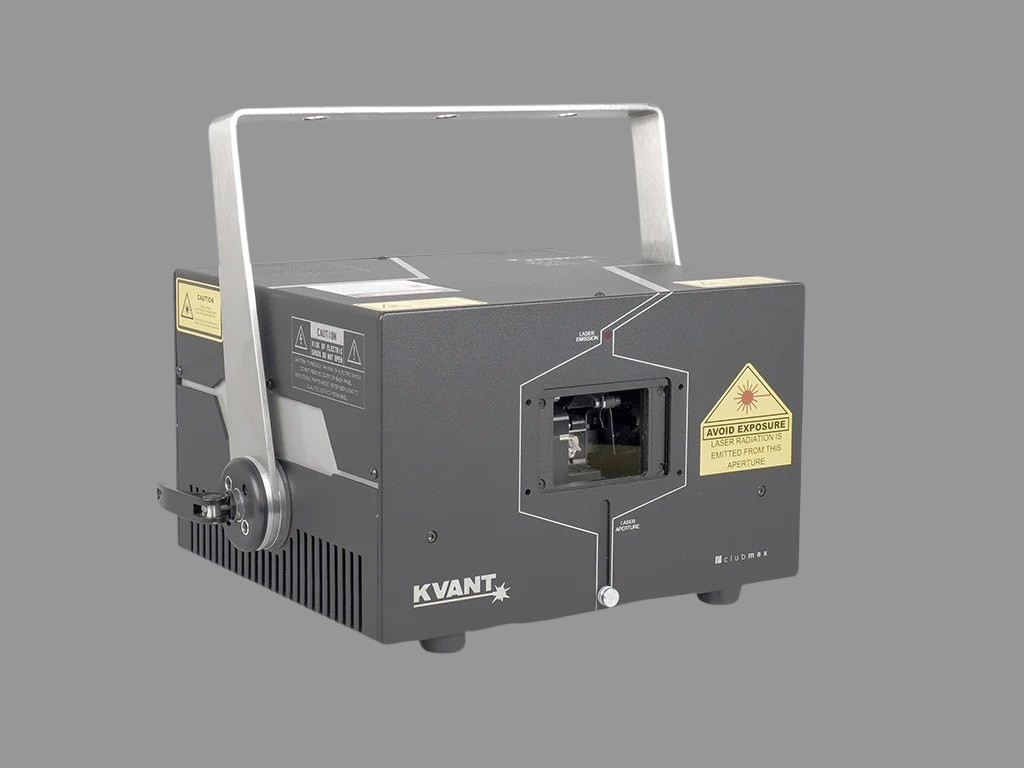

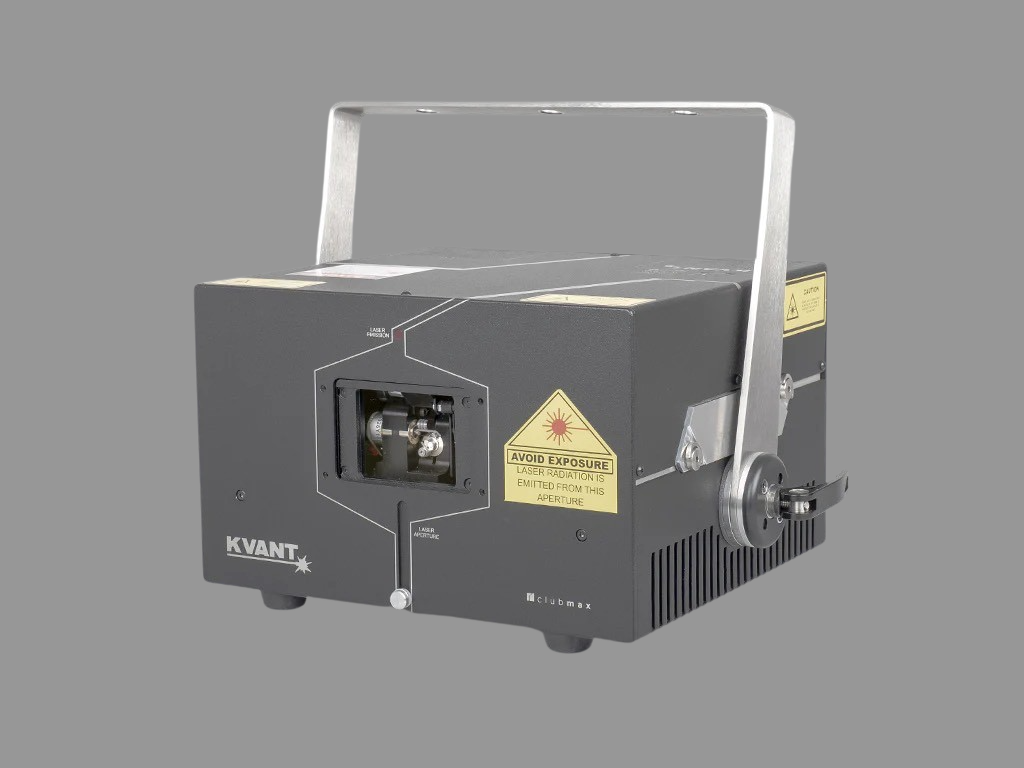

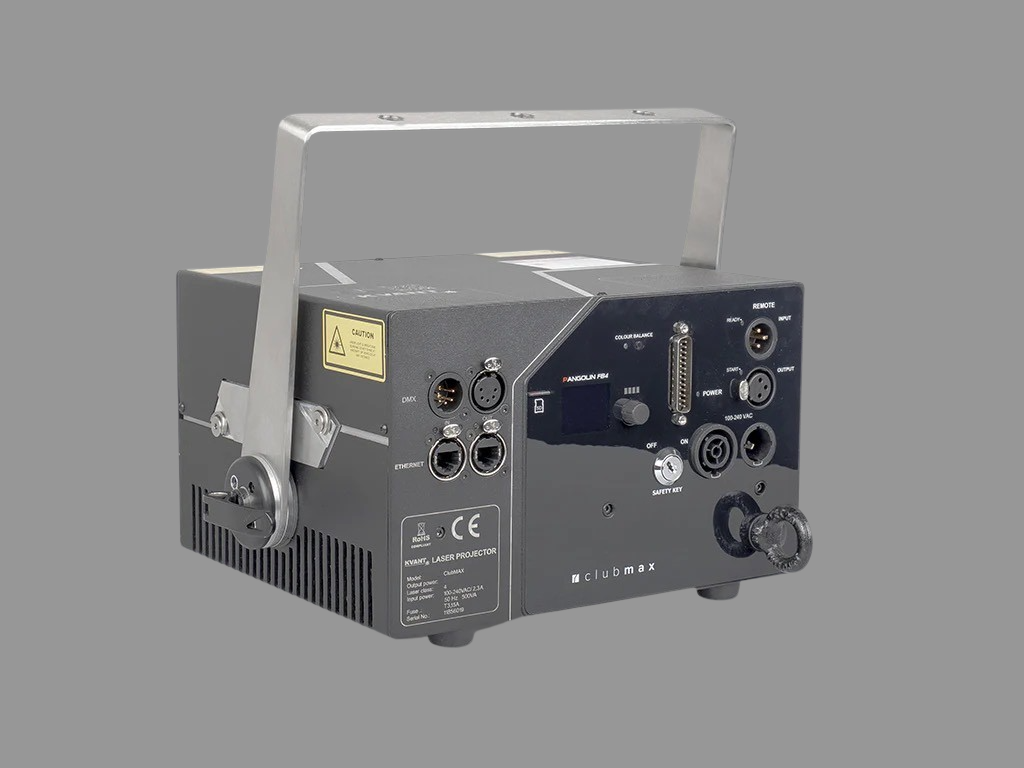

KVANT Clubmax 3000 FB4

KVANT Clubmax 3000 FB4

Regular price $7,600.00 AUD
Regular price Sale price $7,600.00 AUD
Sale Sold out
Shipping calculated at checkout.

Discounted pricing for trade clients. Please email for trade pricing

Request Quotation


Over the last 10 years since the introduction of the Clubmax series of lasers, these lasers fast became the number one bestselling laser for KVANT.

The Clubmax range is a rugged, reliable performer, revered by clubs, production houses and tours worldwide.

Inside every Clubmax FB4 laser, there is a custom version of the Pangolin FB4 - The FB4-SK. This provides the same control options the FB4 is capable of - Streaming from Pangolin software, DMX, Artnet, Auto and Timecode, but also features a colour balance mode to ensure every laser in a rig is perfectly colour matched.

The Clubmax3000 is suited to small indoor venues.


Source | Type:

Semiconductor laser diode | Full-colour RGB laser projector
Suitability: Indoor laser displays [atmospheric, abstract, text, animations]
System control: FB4-SK [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console or Autoplay]

Compliant with:

EN 60825-1 [tested by TÜV SÜD], FDA
Weight [kg]: 8.8
Size [WxHxD, mm]:

339 x 168 x 270 [Technical Drawings are in SUPPORT section of this page]
Guaranteed opt. output [W]: 3
R | G | B [W]:

0.7 | 1.25 | 1.5 [*see note A below]
Wavelengths [nm, ±5nm]:

637 | 525 | 445
Beam size [mm]: 4.5 x 4.5
Beam divergence [mrad]:

0.5 [full angle, averaged value, *see note B below]
Modulation [kHz] | type: 100 | analogue
X-Y scanners:

ScannerMAX 506 Compact | 40 Kpps @ 8° [more options in UPGRADES section of this page]
Power requirements [V] | Input:

100-230/50-60Hz | Neutrik powerCON TRUE1
Max. power consumption [VA]: 340
Operation temperature [°C]: 10-40
Included in the set:

Heavy-duty flight case, 1.5M power lead, 10M Ethernet rj45 signal cable, E-STOP remote with 10M 3-pin XLR cable, set of 4 safety keys, interlock connector [for the USA only], USB memory stick with the user manual. Pangolin QuickShow laser control and creation software is available for FREE download.
HW features:

All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface. Scanning system overload protection.
Laser safety features:

Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.
note A

Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.
note B The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as:
1. FWHM of the beam cross-section for round beams, or
2. The arithmetic average of the beam's horizontal and vertical divergence for all rectangular beams.
