Unity Lasers

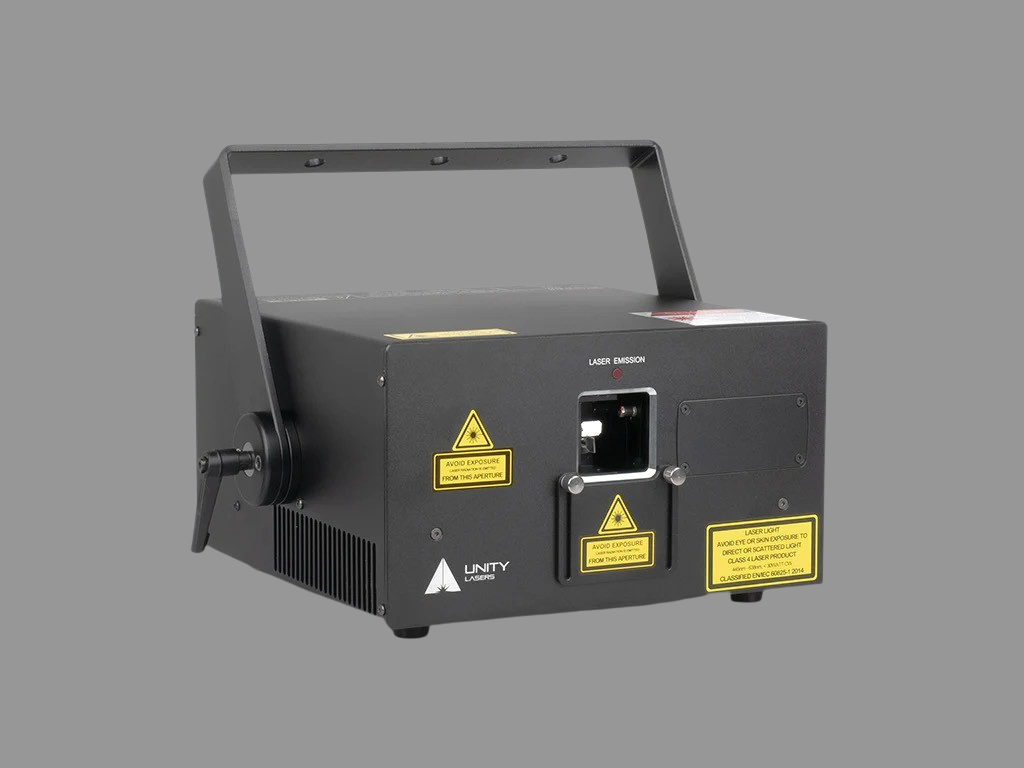

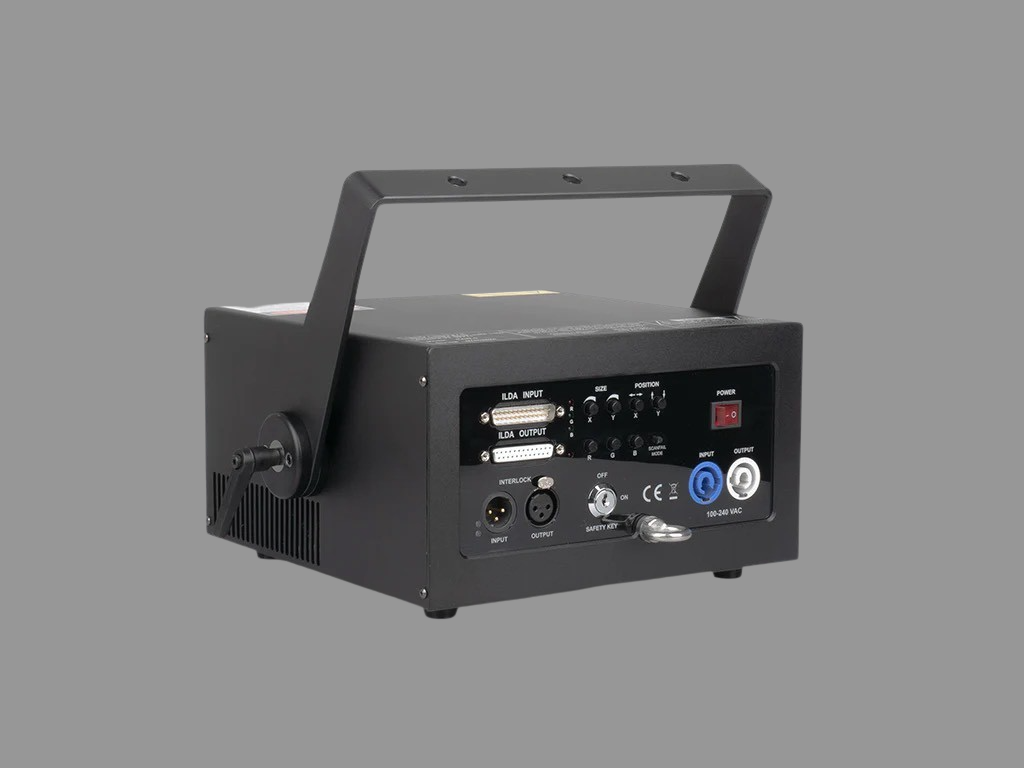

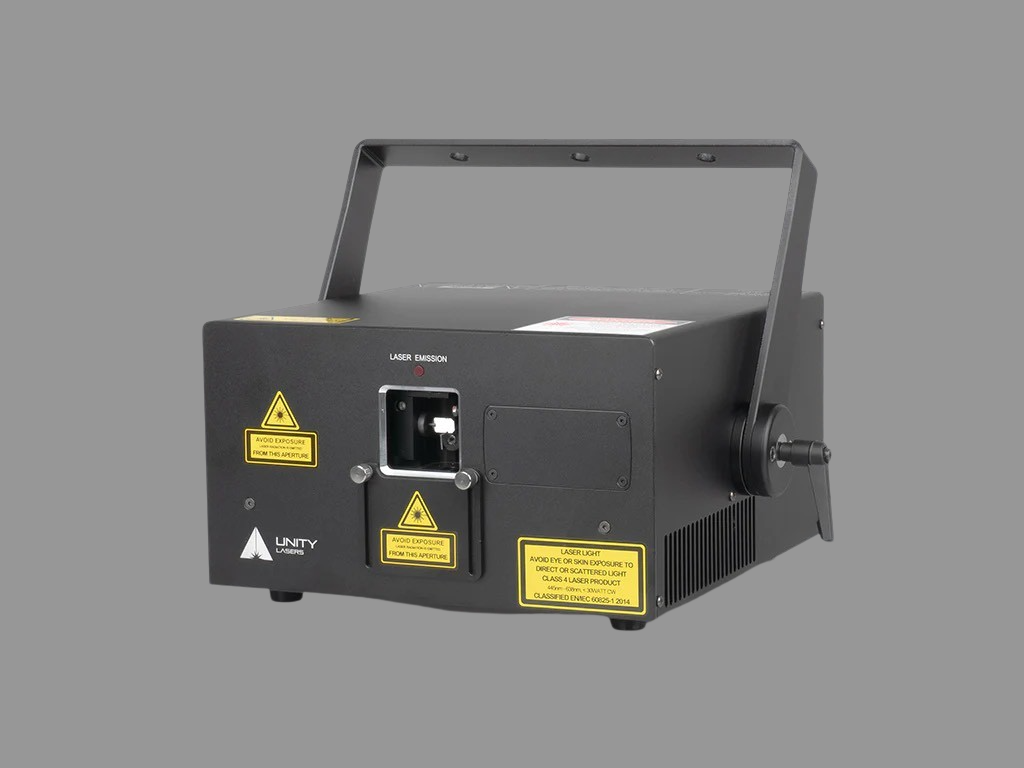

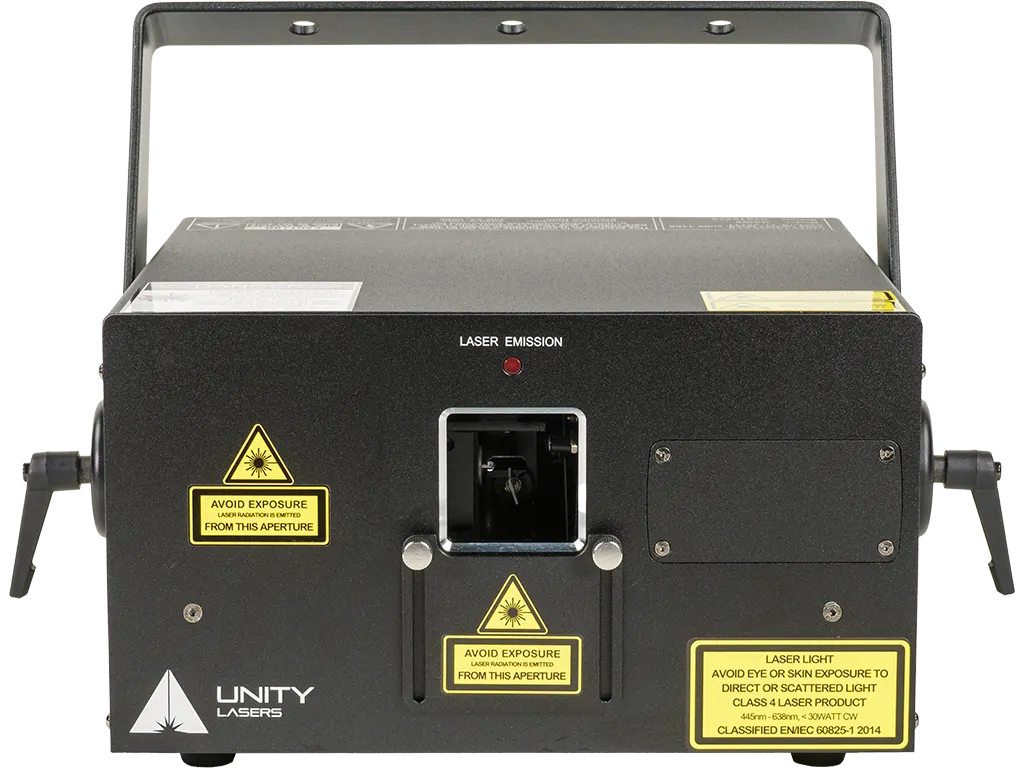

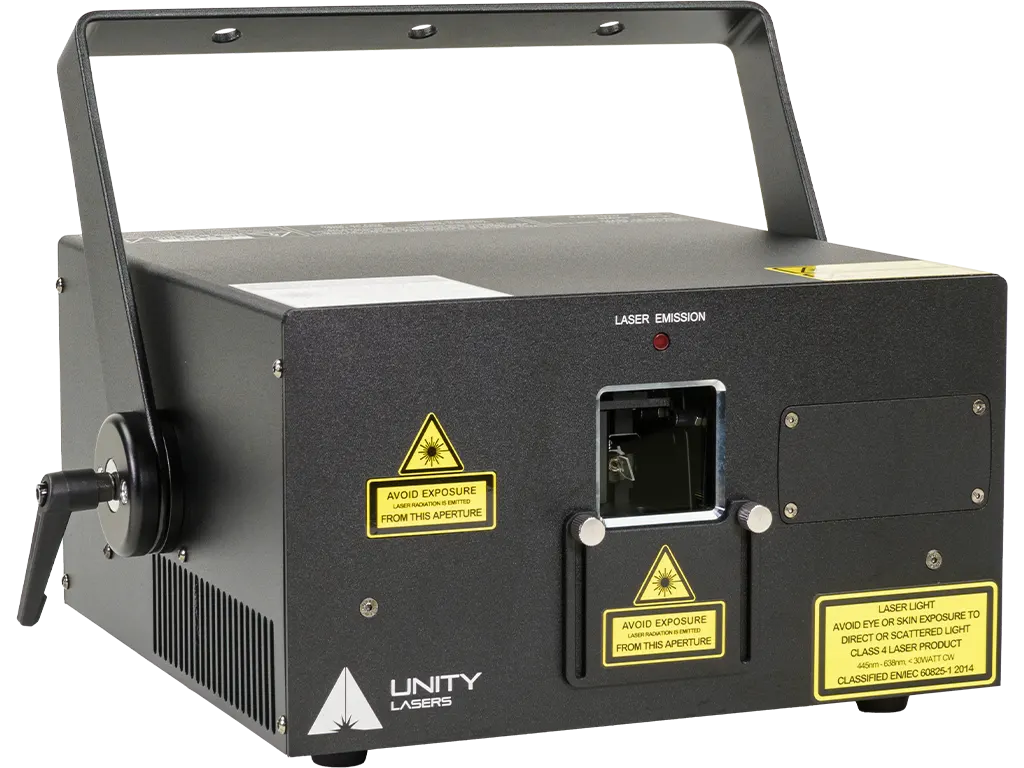

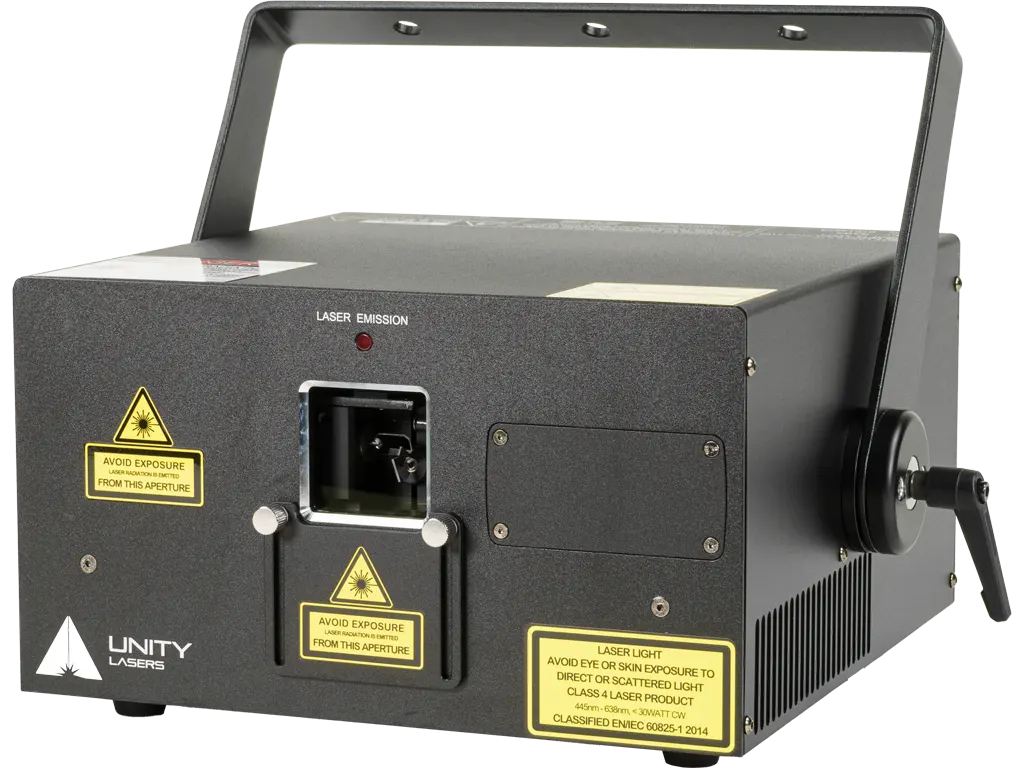

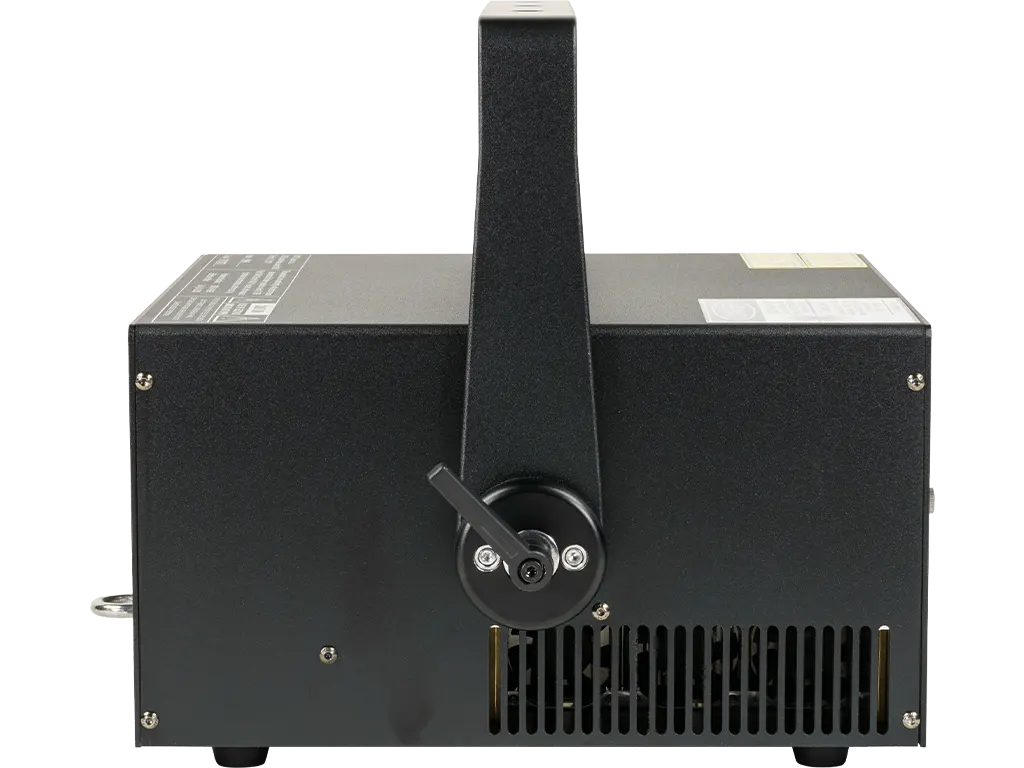

UNITY RAW 5 (DMX+ILDA)
UNITY RAW 5 (DMX+ILDA)
Regular price
$3,100.00 AUD
Regular price
Sale price
$3,100.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Overview:
The Unity RAW 3 is a full-color, ILDA-compatible, RGB diode-based laser projector, with a native DMX control system included also. It is a cost-effective laser show system equipped with the capability to produce mesmerizing aerial beam effects and highly detailed laser graphics, logos, and text. Ideal for consumer and home applications.
Specifications:
| Product Name: | Unity RAW 5 (DMX+ILDA) |
|---|---|
| Type of Laser: | Full-color, Semiconductor diode laser system |
| Guaranteed Optical Output: |
>5W |
| Suitable For: | Clubs, DJs, smaller indoor venues, home and hobby use. Beam show, text, graphic, and mapping capable |
| Control Signal: | DMX mode, sound active mode, and ILDA mode (we recommend Pangolin FB3QS and QuickShow for ILDA control) |
| Scanning System: | 30,000 points per second @ 8° |
| Scan Angle: | 45° |
| Safety: | Fully complies with the latest EN 60825-1 and FDA regulations |
| Weight: | 8kg |
| Package Includes: | Laser projector, Estop box, Estop cable (10M/30ft), ILDA cable (10M/30ft), power cable (1.5M/4.5ft), interlock, keys, manual, quickstart guide, variance card, carton packaging (* service dongle if outside US). |
| R | G | B [mW]: | 1200 | 1200 | 2800 |
| R | G | B [Wavelength]: | 638nm | 520nm | 450nm |
| Beam Size [mm]: | 5 x 3 |
| Beam Divergence: | <1.1mrad [Full Angle] |
| Modulation: | Analog 100kHz |
| Power Requirements: | 100-240V/50-60Hz |
| Consumption: | Max. 150W |
| Operation Temperature: | 10-40 °C |
| Ingress Rating: | IP4X |
| System Features: |

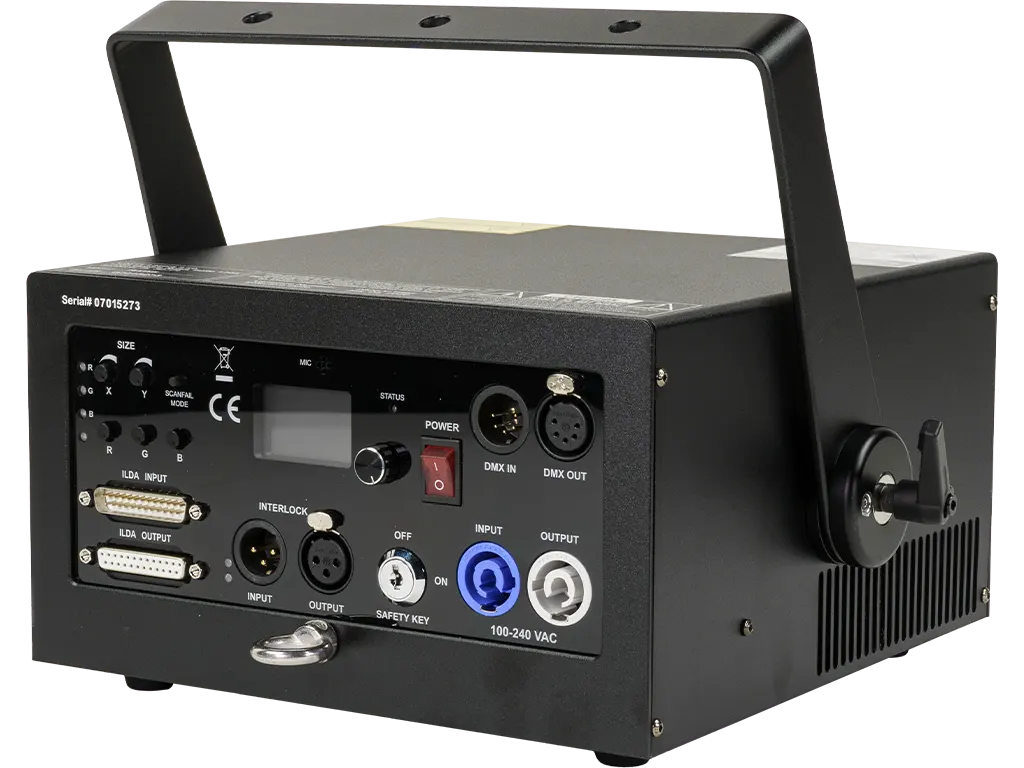

Adjustments for color channels (R,G,B), size/position/invert (X,Y), DMX in/out, ILDA in/out, Estop in/out, power in/out, sound active mode, digital display for DMX address and settings |
| Laser Safety Features: | Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate. |
| Notice: | *Due to the Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output. |
| Dimensions [mm]: | Depth: 252 Width: 247 Height: 148 |
