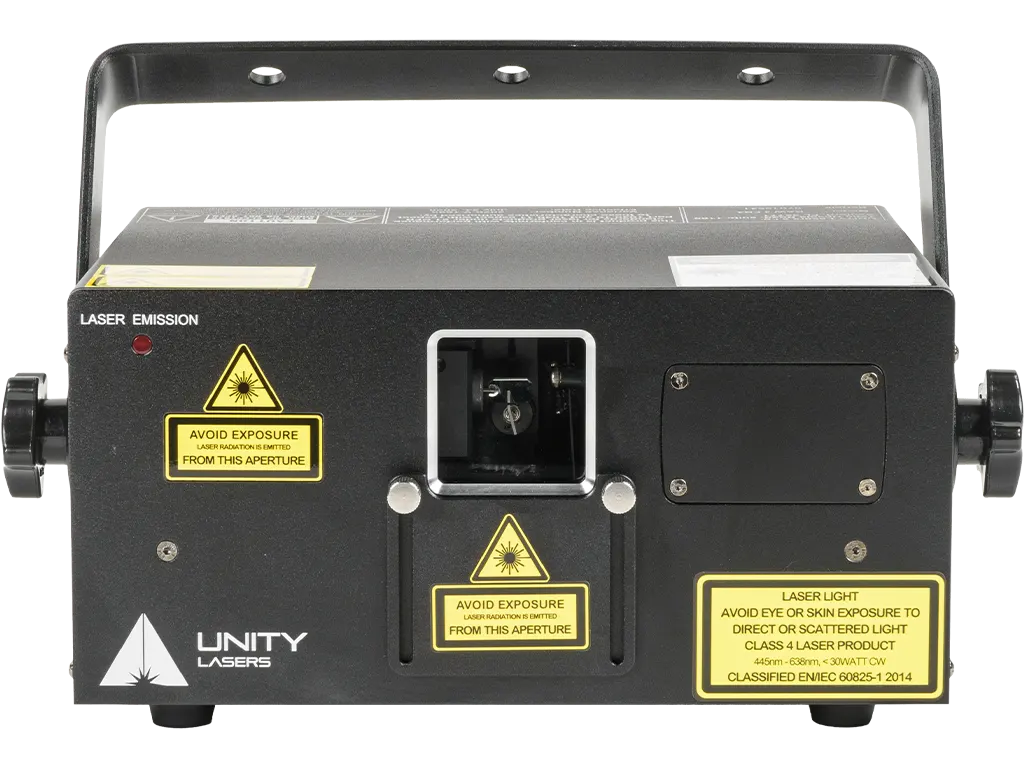

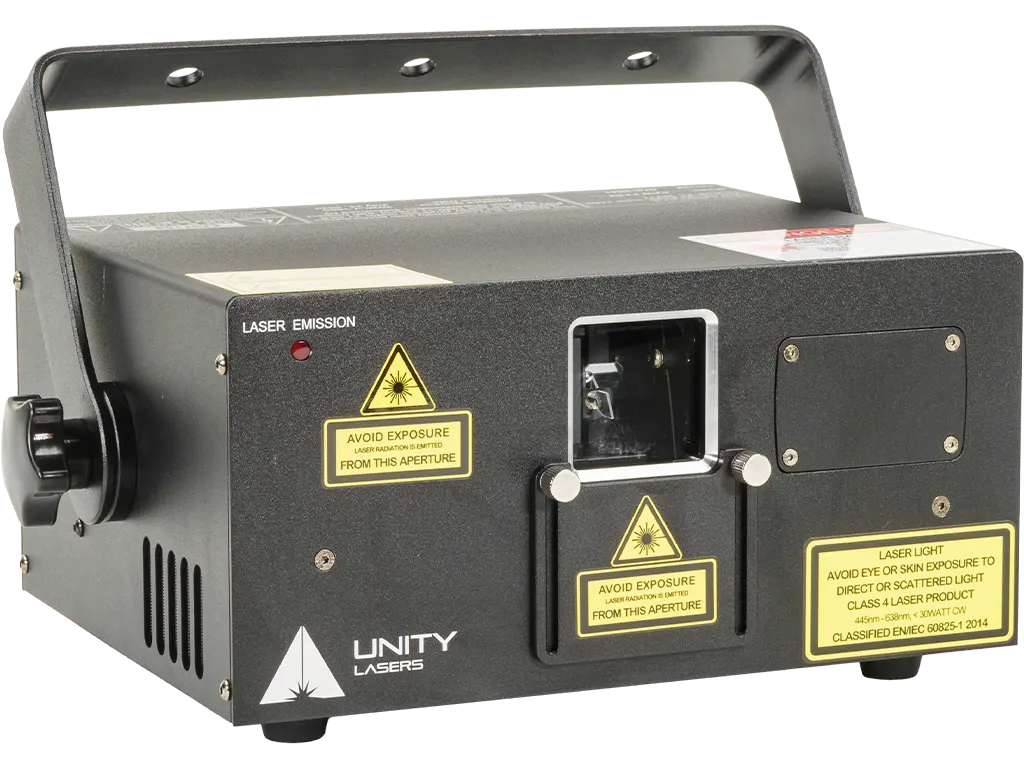

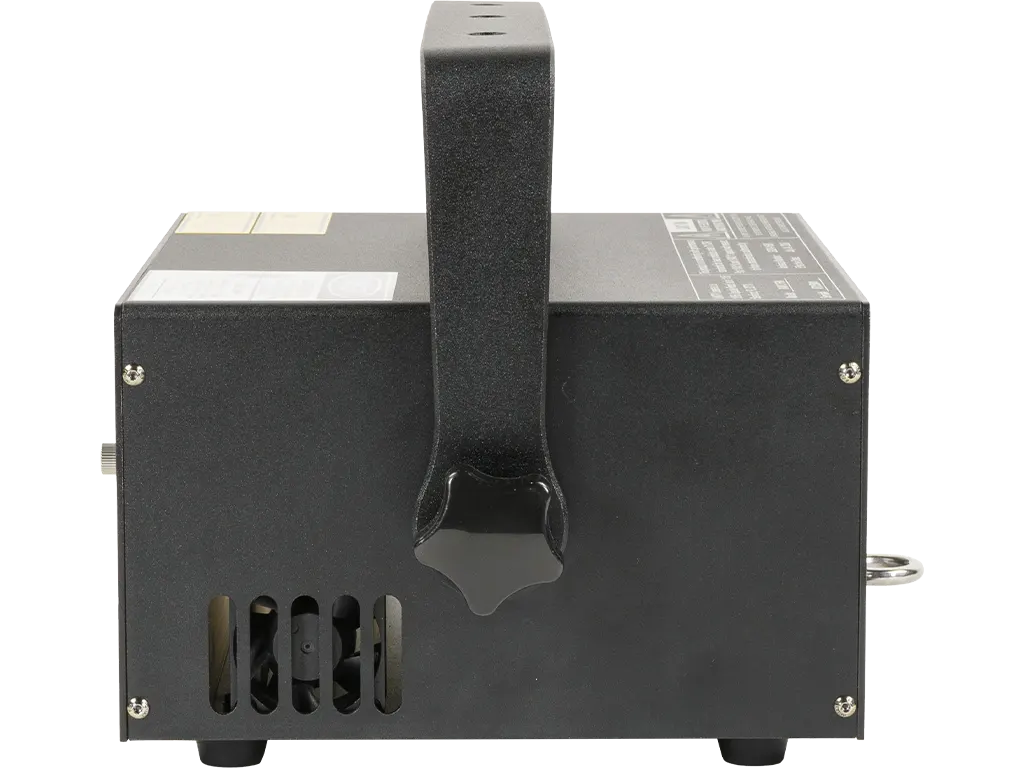

UNITY RAW 3 FB4
UNITY RAW 3 FB4
Overview:
The new Unity RAW 3 FB4 lasers were designed for the emerging professional who needs to interface lasers into more advanced multimedia setups. Ideal for clubs, DJs, and medium sized indoor venues (up to 3,000 people), these lasers integrate our industry-leading FB4 control hardware into the devices. Providing you with the same control infrastructure the professionals use, and a FREE copy of our powerful QuickShow software and MoboLaser app (for Apple and Android) to design, create, and control with. Using RAW 3 FB4, you can make any type of laser display you can imagine (beam shows, graphics, text, logos, or mapping sequences) and control your show content however you desire – be it from a lighting console, PC, or in stand-alone “auto” mode. Patch into other lighting networks as well, for seamless control of your lasers, lighting, and other FX.
Specifications:
Product Name: | Unity RAW 3 FB4 |
---|---|
Type of Laser: | Full-color, Semiconductor diode laser system |
Guaranteed Optical Output: |
>3w |
Suitable For: | Clubs, DJs, medium indoor venues (up to 3,000 people), home and hobby use. Beam show, text, graphic, and mapping capable |
Control Signal: | Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android] |
Scanning System: | 35,000 points per second @ 8° |
Scan Angle: | 50° |
Safety: | Fully complies with the latest EN 60825-1 and FDA regulations |
Weight: | 5.3kg |
Package Includes: | Laser projector w/ FB4 DMX, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock, keys, manual, quickstart guide, variance card (* service dongle if outside US) |
R | G | B [mW]: | 500 | 800 | 1,700 |
R | G | B [Wavelength]: | 638nm | 520nm | 450nm |
Beam Size [mm]: | 5 x 3 |
Beam Divergence: | <1.0mrad [Full Angle] |
Modulation: | Analog 50kHz |
Power Requirements: | 100-240V/50-60Hz |
Consumption: | Max. 100W |
Operation Temperature: | 10-40 °C |
Ingress Rating: | IP4X |

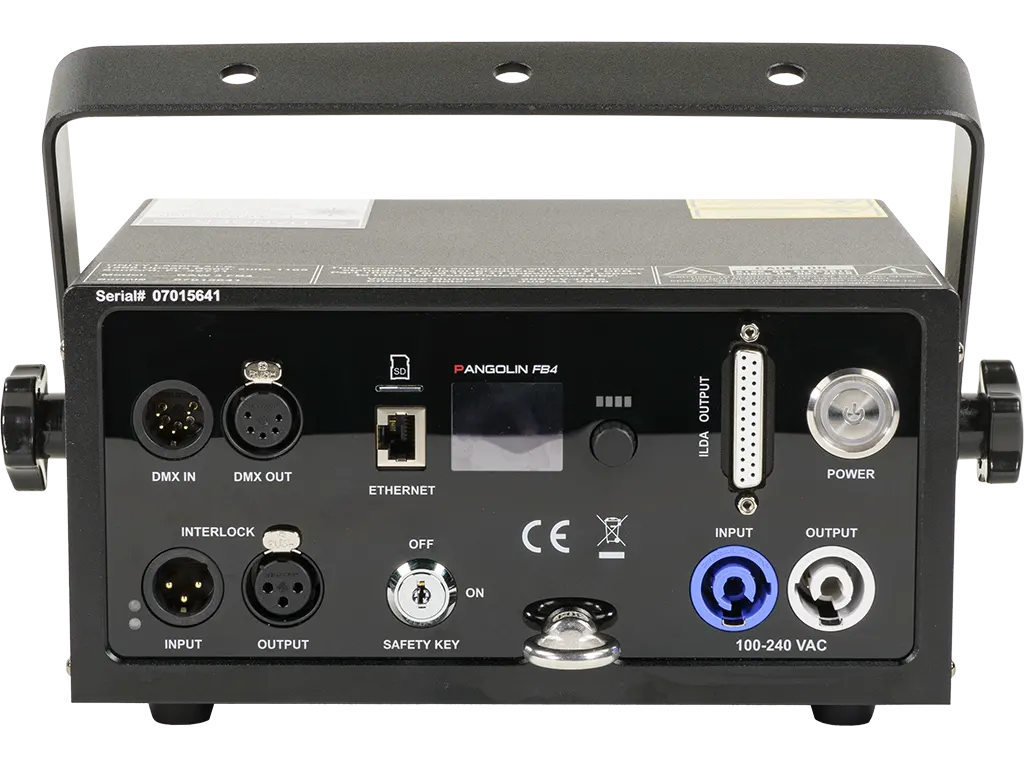

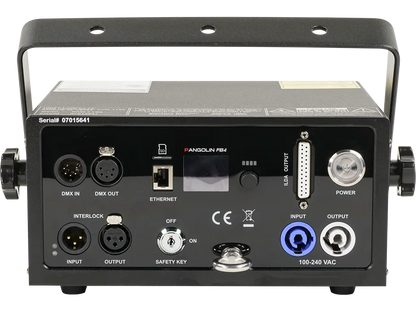

System Features: | All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in/out, DMX in/out, Estop in/out |
Laser Safety Features: | Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate. |
Notice: | *Due to the Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output. |
Dimensions [mm]: | Depth: 238 Width: 192 Height: 126 |
